產品中心
當前位置:產品中心

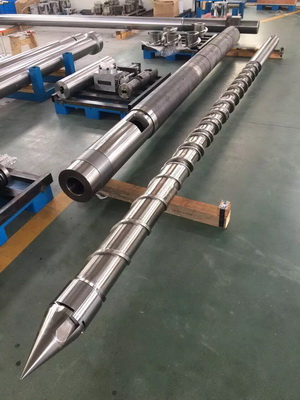

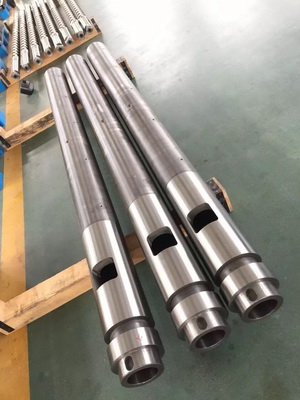

注塑機單螺桿、機筒

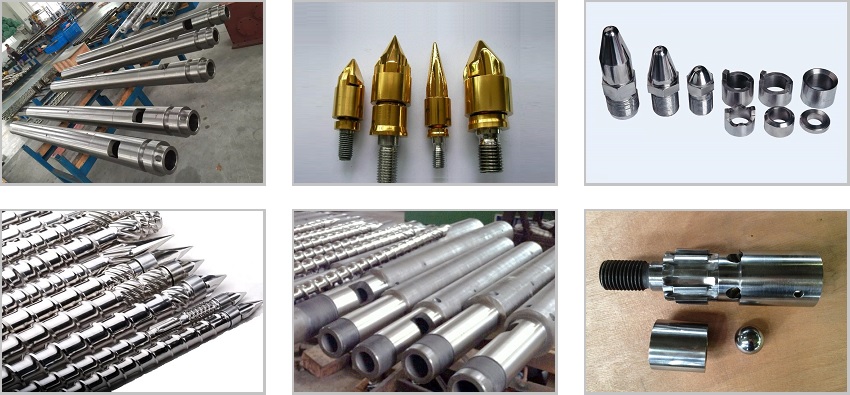

各種注塑機單螺桿、機筒噴嘴、螺桿頭、止逆環、推力環等配件


☆螺桿直徑: Φ20-Φ500mm
☆最長螺桿: 10000mm
☆鎖模力:100KN-35000KN
☆注塑量:30g-30000g
(螺桿結構和壓縮比可根據不同的產品及不同的配件進行設計)


☆機筒最大內徑: Φ500mm
☆最長機筒: 10000mm


技術參數:
☆氮化硬度        Hv850-1050 (HRc56°- 65°)
☆氮化層深度        0.45-0.7mm
☆氮化脆度        ≤ 二級
☆表面粗糙度        Ra 0.4μm
☆螺桿直線度        0.015mm/m
☆氮化后表面鍍鉻層硬度        ≥900Hv
☆鍍鉻層厚度        0.025-0.10mm
☆雙合金硬度        HRc56°- 65°
☆合金層深度        0.8-2.0mm



材質成分:
38CrMoAlA,42CrMo,SKD61,GH113,不銹鋼,鍍鉻以及雙合金等材料。
